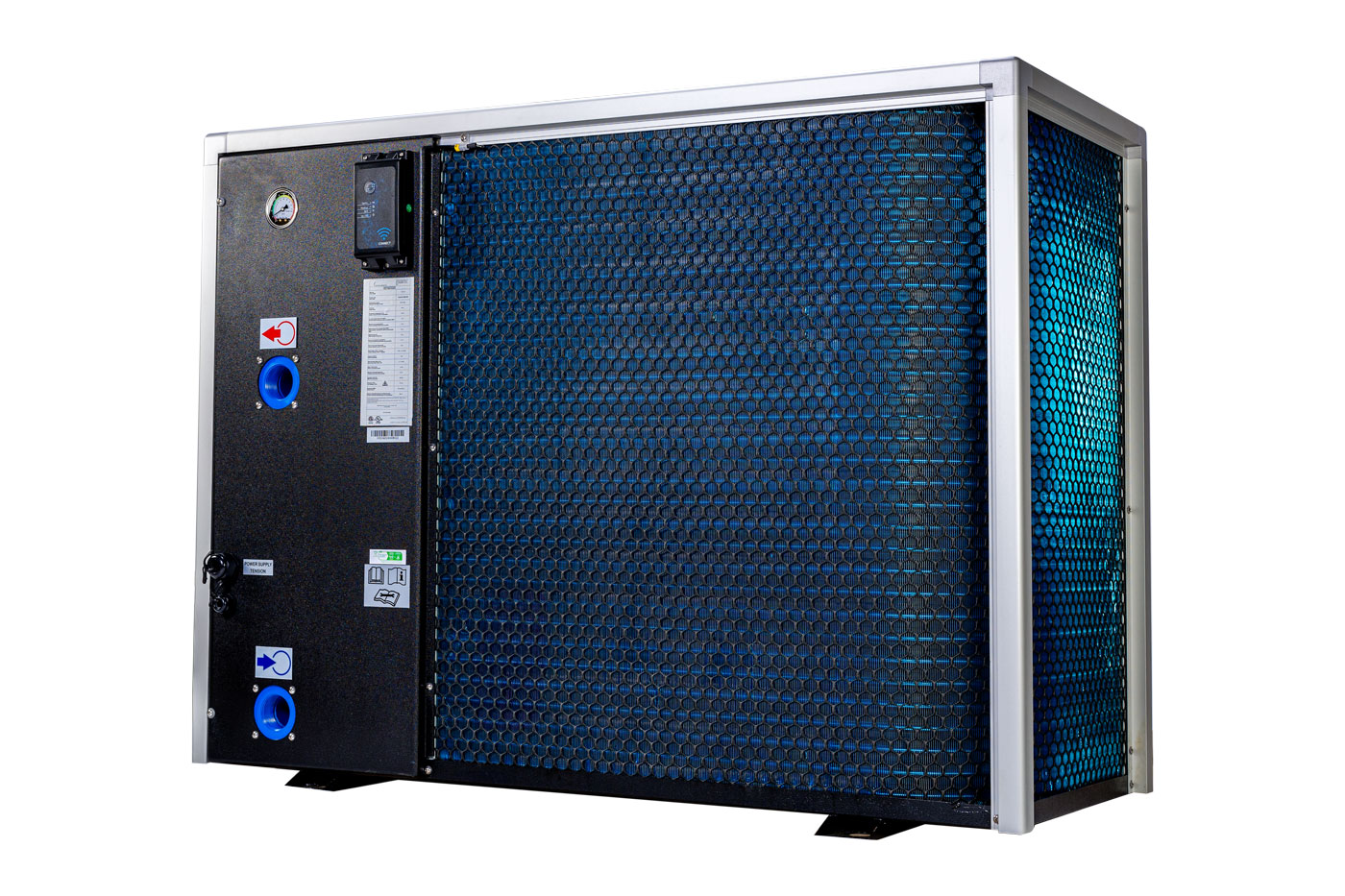

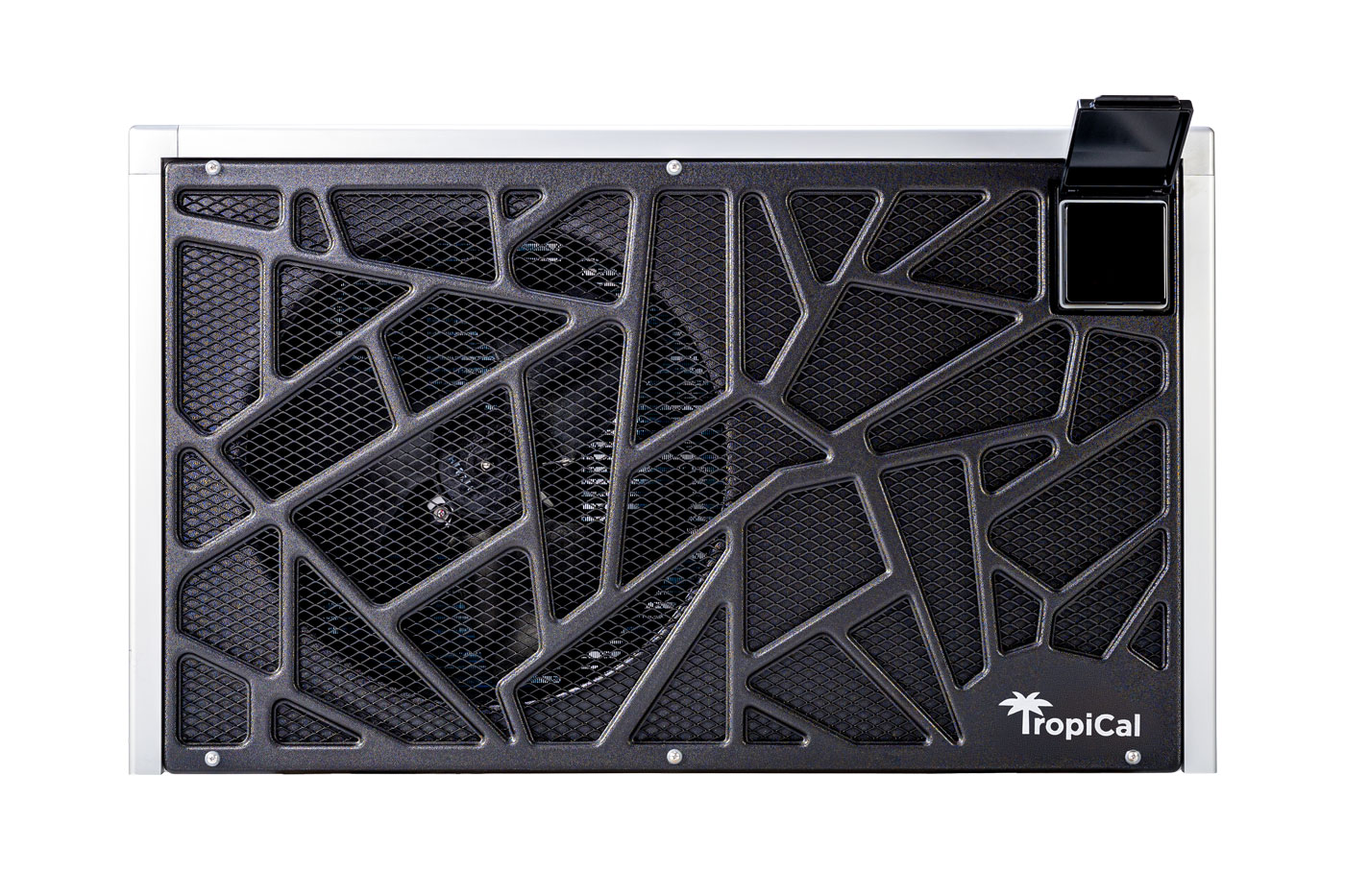

Experience the next generation of pool heating with the New TropiCal Heat Pump, AquaCal’s latest advancement in technology. Equipped with full inverter technology, the TropiCal adjusts its performance to maintain the perfect pool temperature while minimizing energy use and noise.

Whether it’s rapid heating, energy efficiency, or a balanced solution you’re after, the TropiCal delivers with three smart operating modes designed to meet a variety of needs.

Manage your heat pump effortlessly with the intuitive 4-inch color touch screen, or remotely via our secure PoolSync mobile app.

What’s Inverter technology?
Inverter technology is like cruise control for your pool’s heating system. Instead of the heat pump constantly turning on and off (like older models), it smoothly adjusts to maintain the perfect temperature. This means your pool stays at the ideal temperature, using less energy and making less noise.

PoolSync Ready

Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app.

Contact AquaCal for your Sizing Needs
ahri_cert_product   CE logo   ETL logo

AHRI’s globally recognized and industry respected heat pump pool heaters certification program provides outstanding value to equipment and component manufacturers, customers, and government regulators. AHRI Certified® products are subject to rigorous and continuous testing by a third-party laboratory under contract to AHRI. Only products certified by AHRI are listed in AHRI’s Directory of Certified Product Performance, a real-time database at web page. More information can be found online on the heat pump pool heaters Certification Program (web page), and the heat pump pool heaters contractors (web page).

California residents – Click here for Proposition 65 warning

Category:

Brochures & Manuals

Specs 60Hz

T70
BTU 80/80/80 Boost Mode 68000
80/80/63 Boost Mode 64000
80/50/63 Boost Mode 44000
kW kW Output 12.9-19.9
COP 80/80/80 Boost Mode 5.7
80/80/63 Boost Mode 5.5
80/50/63 Boost Mode 4.16
80/80/80 Eco Mode 10.8
Refrigerant R32
Electrical kW Input 4.1
Voltage/Hz/Phase 230V/50-60Hz/1
Max Fuse Size 25
Min Circuit Ampacity 12.2
Min Breaker Size 20
Water Flow Min/Max (gpm) 30/60
A manual bypass is required for all installations. See product manual for more details.
Physical Weight 139lbs/63kg
Length x Width x Height (in) 43″x19″x28″
Length x Width x Height (cm) 109x48x71
Shipping Weight 176lbs/80kg
Length x Width x Height (in) 44″x20″x35″
Length x Width x Height (cm) 112x51x89

Model Comparison

T60 T70 T100
BTU 80/80/80 Boost Mode 58000 68000 106000
80/80/63 Boost Mode 54000 64000 100000
80/50/63 Boost Mode 40000 44000 45000
kW kW Output 11.7-17.0 12.9-19.9 20.5-29.6
COP 80/80/80 Boost Mode 5.9 5.7 5
80/80/63 Boost Mode 5.6 5.5 4.8
80/50/63 Boost Mode 4.35 4.16 4.1
80/80/80 Eco Mode 11.2 10.8 10.1
Refrigerant R32 R32 R32
Electrical kW Input 3.4 4.1 6
Voltage/Hz/Phase 230V/50-60Hz/1 230V/50-60Hz/1 230V/50-60Hz/1
Max Fuse Size 25 25 50
Min Circuit Ampacity 12.2 12.2 25.8
Min Breaker Size 20 20 40
Water Flow Min/Max (gpm) 20/50 30/60 45/80
A manual bypass is required for all installations. See product manual for more details.
Physical Weight 137lbs/62kg 139lbs/63kg 207lbs/94kg
Length x Width x Height (in) 43″x19″x28″ 43″x19″x28″ 46″x20″x34″
Length x Width x Height (cm) 108x48x71 109x48x71 117x51x86
Shipping Weight 158lbs/72kg 176lbs/80kg 245lbs/111kg
Length x Width x Height (in) 44″x20″x35″ 44″x20″x35″ 48″x22″x41″
Length x Width x Height (cm) 112x51x89 112x51x89 122x56x104
