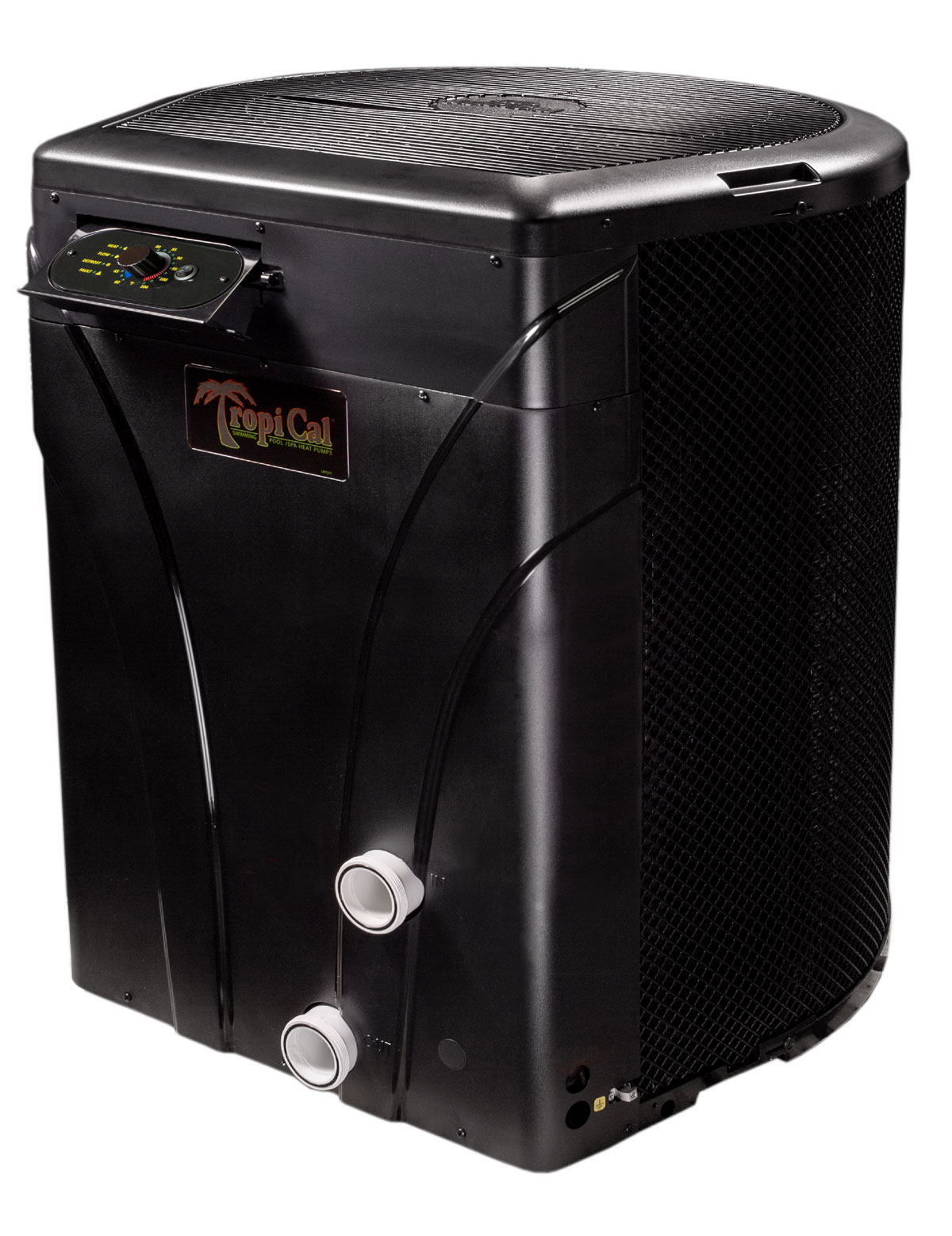

Get the most out of your pool heating investment!
- High performance titanium heat exchanger (Patented ThermoLink® in the T90, T115 and T135 models)
- Microprocessor controlled defrost cycle allows operation down to mid to low 40s °F
- Built-in drain pan for condensate management
- Impact resistant, rust and fade proof cabinet
- Quieter than conventional heat pumps
- NEW Smart Microprocessor Control
- Weather protected microprocessor control with water temperature setpoint dial (60°-104° F), easy to use and compatible with most external controllers
- Flip-out, lockable control panel is protected against sun and weather and can be easily programmed to prevent others from tampering with settings
- Ability to connect to most external controllers
Rated in accordance with AHRI standard 1160.
Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required
AHRI’s globally recognized and industry respected heat pump pool heaters certification program provides outstanding value to equipment and component manufacturers, customers, and government regulators. AHRI Certified® products are subject to rigorous and continuous testing by a third-party laboratory under contract to AHRI. Only products certified by AHRI are listed in AHRI’s Directory of Certified Product Performance, a real-time database at web page. More information can be found online on the heat pump pool heaters Certification Program (web page), and the heat pump pool heaters contractors (web page).
California residents – Click here for Proposition 65 warning
Specs
| BTUs | T115 |
|---|---|
| 80/80/80 | 112,000 |
| 80/80/63 | 106,000 |
| 80/50/63 | 74,000 |
| Coefficient of Performance | |
| 80/80/80 | 5.6 |
| 80/80/63 | 5.4 |
| 80/50/63 | 4.0 |
| Refrigerant | R410A |
| Heat Exchanger | ThermoLink® |
| Electrical | |
| kW Input | 5.9 |
| Voltage/Hz/Phase | 208-230/60/1 |
| Minimum Circuit Ampacity | 38.2 |
| Maximum Fuse Size | 60 |
| *Over Temperature Alarm Kit available: part number STK0221 for single phase, STK0222 for three phase. Strongly recommended for all spa applications. | |
| Water Flow | |
| Minimum/Maximum (gpm) | 30/70 |
| *A Heater Bypass Kit is required when flow rates exceed the maximum: part number STK0135. | |
| Physical | |
| Weight (lbs) | 261 |
| Length x Width x Height (in) | 34″ x 34″ x 39″ |
| Shipping | |
| Weight (lbs) | 301 |
| Length x Width x Height (in) | 37″ x 36″ x 45″ |
| Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity | |
Brochures & Manuals
Specs 60Hz
| 60Hz | T55 | T75 | T90 | T115 | T135 |
|---|---|---|---|---|---|
| BTUs (water temp/ambient air/relative humidity) |
|||||
| 80/80/80 | 52,000 | 74,000 | 96,000 | 112,000 | 132,000 |
| 80/80/63 | 50,000 | 70,000 | 90,000 | 106,000 | 125,000 |
| 80/50/63 | 33,000 | 49,000 | 65,000 | 74,000 | 84,000 |
| Coefficient of Performance (water temp/ambient air/relative humidity) |
|||||
| 80/80/80 | 6.0 | 5.6 | 6.0 | 5.6 | 5.7 |
| 80/80/63 | 5.8 | 5.4 | 5.8 | 5.4 | 5.6 |
| 80/50/63 | 4.0 | 4.0 | 4.2 | 4.0 | 4.0 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A |
| Heat Exchanger | Tube in Tube | Tube in Tube | ThermoLink® | ThermoLink® | ThermoLink® |
| Electrical | |||||
| kW Input | 2.7 | 3.9 | 4.7 | 5.9 | 6.8 |
| Voltage/Hz/Phase | 208-230/60/1 | 208-230/60/1 | 208-230/60/1 | 208-230/60/1 | 208-230/60/1 |
| Minimum Circuit Ampacity | 22.6 | 31.4 | 40.2 | 38.2 | 43.3 |
| Maximum Fuse Size | 30 | 50 | 60 | 60 | 60 |
| *Over Temperature Alarm Kit available: part number STK0221 for single phase, STK0222 for three phase. Strongly recommended for all spa applications. | |||||
| Water Flow | |||||
| Minimum/Maximum (gpm) | 20/45 | 20/45 | 30/70 | 30/70 | 30/70 |
| * A Heater Bypass Kit is required when flow rates exceed the maximum: part number STK0135. | |||||
| Physical | |||||
| Weight (lbs) | 196 | 208 | 231 | 261 | 262 |
| Length x Width x Height (in) | 34″ x 34″x 28″ | 34″ x 34″x 28″ | 34″ x 34″ x 39″ | 34″ x 34″ x 39″ | 34″ x 34″ x 39″ |
| Shipping | |||||
| Weight (lbs) | 236 | 248 | 271 | 301 | 302 |
| Length x Width x Height (in) | 37″ x 36″x 34″ | 37″ x 36″x 34Í” | 37″ x 36″x 45″ | 37″ x 36″x 45″ | 37″ x 36″x 45″ |
| Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity | |||||
Specs 50Hz
| 50 Hz | T55R | T75R | T115R | T135R | T170R |
|---|---|---|---|---|---|
| Efficiency | |||||
| kW Output | 12.6 | 21.5 | 26.8 | 30.0 | 48.0 |
| BTU Output | 43,000 | 73,000 | 91,000 | 102,000 | 164,000 |
| Coefficient of Performance | 6.0 | 7.7 | 6.9 | 6.8 | 6.7 |
| kW Input | 2.1 | 2.8 | 3.9 | 4.4 | 7.2 |
| Electrical | |||||
| Heat or Heat & Cool | H & C | H & C | H & C | H & C | H & C |
| Voltage/Hz/Phase 50Hz: H-220-240/50/1 D-380-415/50/3 |
D | H & D | D | D | D |
| Maximum Fuse Size | D – 10 | H – 35
D – 15 |
D – 25 | D – 25 | D – 35 |
| Minimum Circuit Ampacity | D – 7.6 | H – 20.3
D – 10.1 |
D – 15.2 | D – 17.2 | D – 22.0 |
| Refrigerant | R410A | R410A | R410A | R410A | R410A |
| Heat Exchanger | Tube in Tube | Tube in Tube | ThermoLink® | ThermoLink® | ThermoLink® |
| Water Flow | |||||
| Min./Max. Water Flow (m3/h) | 4.5/10.2 | 4.5/10.2 | 6.8/15.9 | 6.8/15.9 | 6.8/15.9 |
| Min./Max. Water Flow (gpm) | 20/45 | 20/45 | 30/70 | 30/70 | 30/70 |
| Physical | |||||
| Weight (kg) | 91 | 96 | 121 | 122 | 146 |
| Weight (lb) | 200 | 210 | 265 | 267 | 320 |
| Length x Width x Height (cm) | 87 x 87 x 72 | 87 x 87 x 72 | 87 x 87 x 100 | 87 x 87 x 100 | 89 x 92 x 106 |
| Length x Width x Height (in) | |||||
| Weight (kg) | 109 | 114 | 139 | 140 | 164 |
| Weight (lbs) | 240 | 250 | 305 | 307 | 360 |
| Length x Width x Height (cm) | 94 x 92 x 87 | 94 x 92 x 87 | 94 x 92 x 115 | 94 x 92 x 115 | 97 x 115 x 120 |
| Length x Width x Height (in) | 37″ x 36″ x 34″ | 37″ x 36″ x 34″ | 38″ x 36″ x 45″ | 38″ x 36″ x 45″ | 38″ x 45″ x 47″ |
