Document LTM0890 rev 2



Page Location: Home > Programming

Programming for an External Controller

Configure heat pump for external control.

Using JAO interface

Press "Up" and "Down" buttons simultaneously until CF1 appears.

Press "Pool / Spa" button until LOC is displayed.

Press "Up" or "Down" to passcode. Default is "17".

Press "Pool / Spa" button once.



Press the "Pool / Spa" button until JAO is displayed.

Press "Up" or "Down" button.

  • "0" - none
  • "2" - two-wire
  • "3" - three-wire



Using FS2 interface

Press "Up" and "Down" buttons simultaneously until CF1 appears.

Press "Pool / Spa" button until LOC is displayed.

Press "Up" or "Down" to passcode. Default is "17".

Press "Pool / Spa" button once.

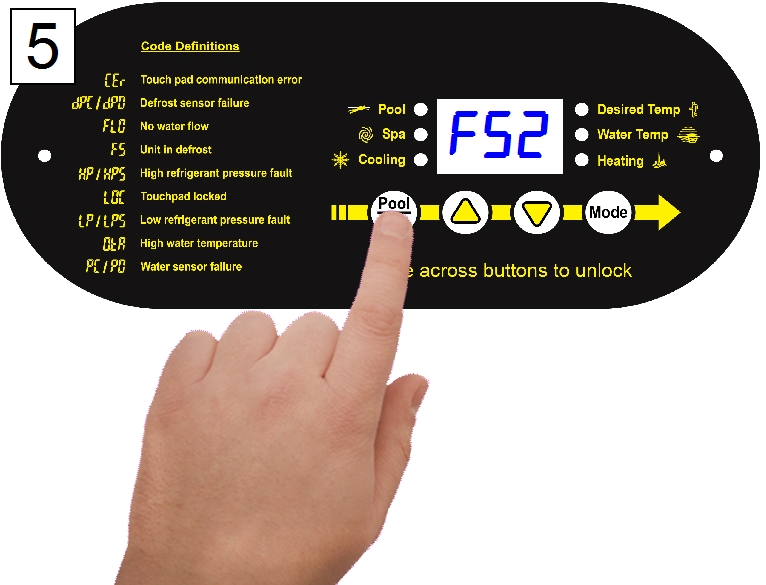

Press the "Pool / Spa" button until FS2 is displayed.

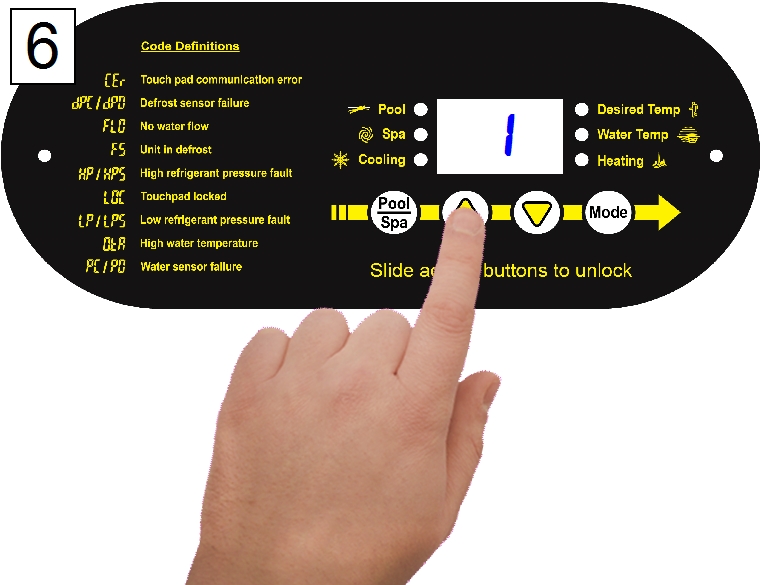

Press "Up" or "Down" button.

  • "0" - none
  • "1" - External
